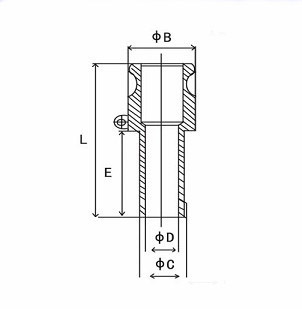

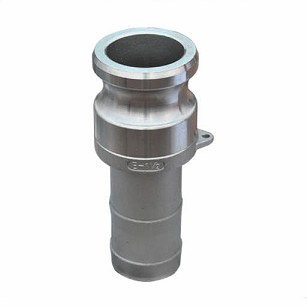

【快速接头E型】参数规格
|
尺寸
SIZE |
Inch |
1/2 |
3/4 |
1 |
1-1/4 |
1-1/2 |
2 |
2-1/2 |
3 |
4 |
6 |
|
mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
150 | |
|
B |
34.5 |
34.5 |
39.0 |
48.0 |
56.0 |
65.3 |
80.0 |
96.0 |
122.0 |
188.0 | |
|
C |
15.0 |
21.4 |
27.4 |
34.0 |
40.5 |
53.0 |
66.5 |
79.0 |
104.8 |
157.0 | |
|
D |
8.0 |
14.0 |
20.0 |
25.0 |
31.0 |
43.0 |
55.0 |
68.0 |
92.0 |
140.0 | |
|
E |
45.0 |
54.0 |
60.0 |
61.0 |
64.0 |
78.0 |
85.0 |
101.6 |
110.0 |
141.0 | |
|
L |
85.0 |
94.0 |
106.0 |
115.0 |
120.0 |
140.0 |
150.0 |
165.1 |
180.0 |
220.0 | |
