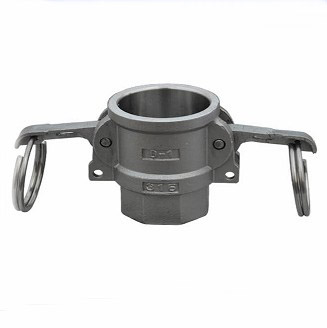

【快速接头D型】参数规格
|

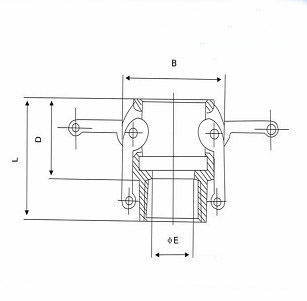

尺寸
SIZE |
Inch |
1/2 |
3/4 |
1 |
1-1/4 |
1-1/2 |
2 |
2-1/2 |
3 |
4 |
6 |
|
mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
150 | |
|
B |
53.0 |
53.0 |
60.0 |
81.3 |
88.5 |
99.5 |
110.5 |
131.0 |
159.0 |
220.0 | |
|
D |
32.0 |
32.0 |
40.0 |
48.0 |
49.0 |
54.0 |
59.0 |
60.0 |
62.0 |
220.0 | |
|
E |
15.0 |
20.0 |
25.0 |
32.0 |
39.0 |
50.0 |
61.0 |
75.0 |
92.0 |
145.0 | |
|
L |
50.0 |
50.0 |
60.0 |
68.0 |
71.0 |
78.0 |
85.0 |
90.0 |
96.0 |
118.0 | |
