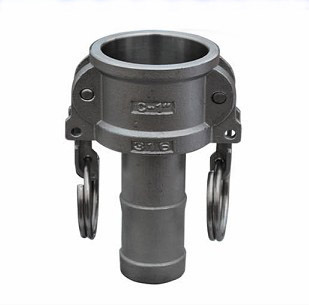

【快速接头C型】参数规格
|

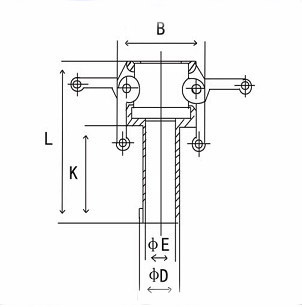

尺寸
SIZE |
Inch |
1/2 |
3/4 |
1 |
1-1/4 |
1-1/2 |
2 |
2-1/2 |
3 |
4 |
6 |
|
mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
150 | |
|
B |
53.0 |
53.0 |
60.0 |
81.3 |
88.5 |
99.5 |
110.5 |
131.0 |
159.0 |
220.0 | |
|
D |
15.0 |
21.4 |
27.4 |
34.0 |
40.5 |
53.0 |
66.5 |
79.4 |
104.8 |
157.0 | |
|
E |
8.0 |
14.0 |
20.0 |
25.0 |
31.0 |
43.0 |
55.0 |
67.0 |
92.0 |
140.0 | |
|
K |
43.0 |
51.0 |
60.0 |
61.0 |
64.0 |
78.0 |
85.0 |
102.0 |
110.0 |
141.0 | |
|
L |
75.0 |
83.0 |
100.0 |
109.0 |
113.0 |
132.0 |
144.0 |
162.0 |
172.0 |
213.0 | |
