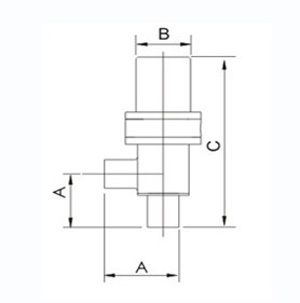

Tube Size
|
A
|
B
|
C
|
Acting
|
|
3/4"
|
50.80
|
60.64
|
157.58
|
Single Acting
|
|
1.0"
|
48.27
|
60.64
|
151.90
|
Single Acting
|
|
1.5"
|
61.20
|
76.50
|
172.56
|
Single Acting
|
|
2.0"
|
71.50
|
84.55
|
242.84
|
Single Acting
|
|
2.5"
|
76.25
|
101.60
|
236.36
|
Double Acting
|
|
3.0"
|
82.60
|
132.00
|
277.00
|
Double Acting
|
|
4.0"
|
111.54
|
151.43
|
331.61
|
Double Acting
|
|
6.0"
|
126.00
|
228.00
|
478.00
|
Double Acting
|
|
8.0"
|
162.00
|
249.00
|
578.00
|
Double Acting
|
|
10.0"
|
201.00
|
311.00
|
636.00
|
Double Acting
|
【气动高真空角阀】标配材质
1.KF/ISO Flanges Material:SUS304
2.Valve Body Material: SUS304
3.Air Cylinder Material: Aircraft Aluminium
4.Bellows Material:AM350 or SUS316L
5.Standard O-ring Material: Viton
6.Bolts:Stainless Steel
【气动高真空角阀】产品特点
1.Leak Late:1*10-10 Pa· m3/s,He
2.Ambient Temperature:0-60°C
3.Max Backing Temperature:100°C(Viton)
4.Endurance:1.5million cycles
5.Standard O-ring Material: Viton
【气动高真空角阀】包装说明
6.Presure Range:1*10-8 mbar to 5bar
编织袋或者纸箱包装，如需特殊包装，请来电时说明
相关搜索关键词：真空角阀、真空挡板阀、手动真空角阀、气动角阀、超高真空角阀、KF真空角阀、ISO真空角阀、CF真空角阀
