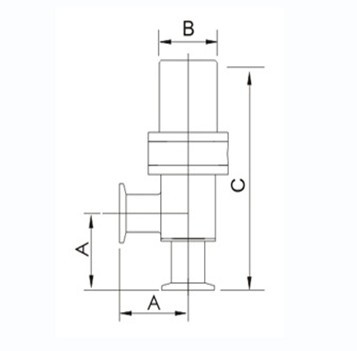

Part No.
|
Flange type
|
A
|
B
|
C
|
Acting
|
|
GDQ-16
|
KF16
|
54.60
|
60.64
|
161.38
|
Single acting
|
|
GDQ-25
|
KF25
|
52.07
|
60.64
|
155.70
|
Single acting
|
|
GDQ-40
|
KF40
|
65.00
|
76.50
|
176.36
|
Single acting
|
|
GDQ-50
|
KF50
|
76.20
|
84.55
|
237.84
|
Single acting
|
|
GDQ-63
|
ISO63
|
82.55
|
101.60
|
242.66
|
Double acting
|
|
GDQ-80
|
ISO80
|
88.90
|
132.00
|
283.30
|
Double acting
|
|
GDQ-100
|
ISO100
|
113.54
|
151.43
|
343.61
|
Double acting
|
|
GDQ-160
|
ISO160
|
138.00
|
228.00
|
490.00
|
Double acting
|
|
GDQ-200
|
ISO200
|
174.00
|
249.00
|
590.00
|
Double acting
|
|
GDQ-250
|
ISO250
|
213.00
|
311.00
|
658.00
|
Double acting
|
【气动真空角阀】标配材质
1.KF/ISO Flanges Material:SUS304
2.Valve Body Material: SUS304
3.Air Cylinder Material: Aircraft Aluminium
4.Bellows Material:AM350 or SUS316L
5.Standard O-ring Material: Viton
6.Bolts:Stainless Steel
【气动真空角阀】产品特点
1.Leak Late:1*10-10 Pa· m3/s,He
2.Ambient Temperature:0-60°C
3.Max Backing Temperature:100°C(Viton)
4.Endurance:1.5million cycles
5.Standard O-ring Material: Viton
【气动真空角阀】包装说明
6.Presure Range:1*10-8 mbar to 5bar
编织袋或者纸箱包装，如需特殊包装，请来电时说明
相关搜索关键词：真空角阀、真空挡板阀、手动真空角阀、气动角阀、超高真空角阀、KF真空角阀、ISO真空角阀、CF真空角阀
