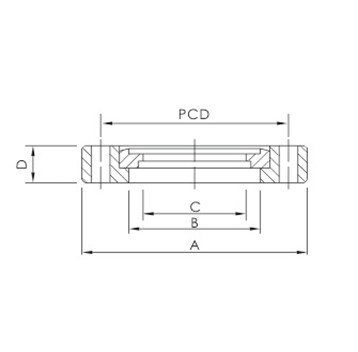

【CF活套法兰】参数规格
|
Part No. |
A |
B |
C |
D |
PCD |
Bolt Holes |
Thread Holes |
|
CF16-3/8(HT) |
34.00 |
9.65 |
7.90 |
7.30 |
27.00 |
∮4.3*6 |
M4*6 |
|
CF16-1/2(HT) |
34.00 |
12.83 |
9.60 |
7.30 |
27.00 |
∮4.3*6 |
M4*6 |
|
CF16-3/4(HT) |
34.00 |
19.30 |
16.00 |
7.30 |
27.00 |
∮4.3*6 |
M4*6 |
|
CF25-1.0(HT) |
54.00 |
25.65 |
22.30 |
10.50 |
43.00 |
∮6.6*6 |
M6*6 |
|
CF35-3/4(HT) |
70.00 |
19.30 |
16.00 |
13.00 |
58.70 |
∮6.6*6 |
M6*6 |
|
CF35-1.0(HT) |
70.00 |
25.65 |
22.30 |
13.00 |
58.70 |
∮6.6*6 |
M6*6 |
|
CF35-1.5(HT) |
70.00 |
38.35 |
35.00 |
13.00 |
58.70 |
∮6.6*6 |
M6*6 |
|
CF50-2.0(HT) |
86.00 |
51.05 |
48.00 |
16.00 |
72.40 |
∮8.4*8 |
M8*8 |
|
CF63-2.5(HT) |
114.00 |
63.75 |
60.50 |
20.00 |
130.30 |
∮8.4*8 |
M8*8 |
|
CF100-4.0(HT) |
152.00 |
101.85 |
97.70 |
20.00 |
130.30 |
∮8.4*16 |
M8*16 |
|
CF160-6.0(HT) |
202.00 |
152.90 |
147.20 |
22.00 |
181.00 |
∮8.4*20 |
M8*20 |
|
CF200-8.0(HT) |
253.00 |
203.70 |
198.00 |
24.50 |
231.80 |
∮8.4*24 |
M8*24 |
|
CF250-10.0(HT) |
305.00 |
254.50 |
247.60 |
26.00 |
284.00 |
∮8.4*32 |
M8*32 |
【CF活套法兰】材质种类
CF活套法兰材质:SUS304 OR SUS316L
