【KF过度管接头】参数规格
|

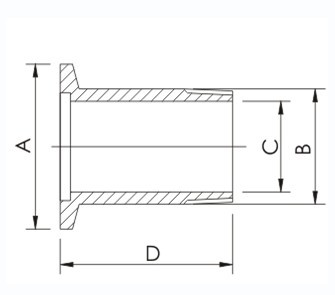

Part No. |
A |
B |
C |
D |
BSPT |
|
KF10-1/4 |
30.00 |
13.16 |
9.00 |
30.00 |
1/4*19BSPT |
|
KF10-3/8 |
30.00 |
16.66 |
10.00 |
30.00 |
3/8*19BSPT |
|
KF16-1/2 |
30.00 |
20.96 |
16.00 |
30.00 |
1/2*14BSPT |
|
KF25-3/4 |
40.00 |
26.44 |
20.00 |
30.00 |
3/4*14BSPT |
|
KF25-1.0 |
40.00 |
33.25 |
24.00 |
30.00 |
1.0*11BSPT |
|
KF40-1.25 |
55.00 |
41.91 |
35.00 |
30.00 |
1.25*11BSPT |
|
KF40-1.5 |
55.00 |
47.80 |
41.00 |
30.00 |
1.5*11BSPT |
|
KF50-2.0 |
75.00 |
59.61 |
51.00 |
30.00 |
2.0*11BSPT |
【KF过度管接头】材质种类:SUS304 OR SUS316L |
