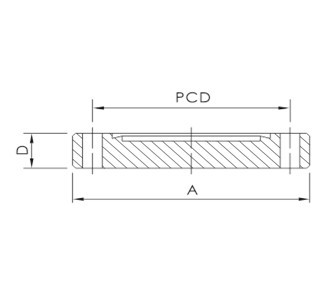

【CF盲板法兰】参数规格
|
Part No. |
A |
D |
PCD |
Bolt Holes |
Thread Holes |
|
CF(MB)-16 |
34.00 |
7.30 |
27.00 |
∮4.3*6 |
M4*6 |
|
CF(MB)-25 |
54.00 |
10.50 |
43.00 |
∮6.6*6 |
M6*6 |
|
CF(MB)-35 |
70.00 |
13.00 |
58.70 |
∮6.6*6 |
M6*6 |
|
CF(MB)-50 |
86.00 |
16.00 |
72.40 |
∮8.4*8 |
M8*8 |
|
CF(MB)-63 |
114.00 |
17.50 |
92.20 |
∮8.4*8 |
M8*8 |
|
CF(MB)-100 |
152.00 |
20.00 |
130.00 |
∮8.4*16 |
M8*16 |
|
CF(MB)-160 |
202.00 |
22.00 |
181.00 |
∮8.4*20 |
M8*20 |
|
CF(MB)-200 |
253.00 |
24.50 |
231.80 |
∮8.4*24 |
M8*24 |
|
CF(MB)-250 |
305.00 |
26.00 |
284.00 |
∮8.4*32 |
M8*32 |
【CF盲板法兰】材质种类
CF盲板法兰材质:SUS304 OR SUS316L
